Overview

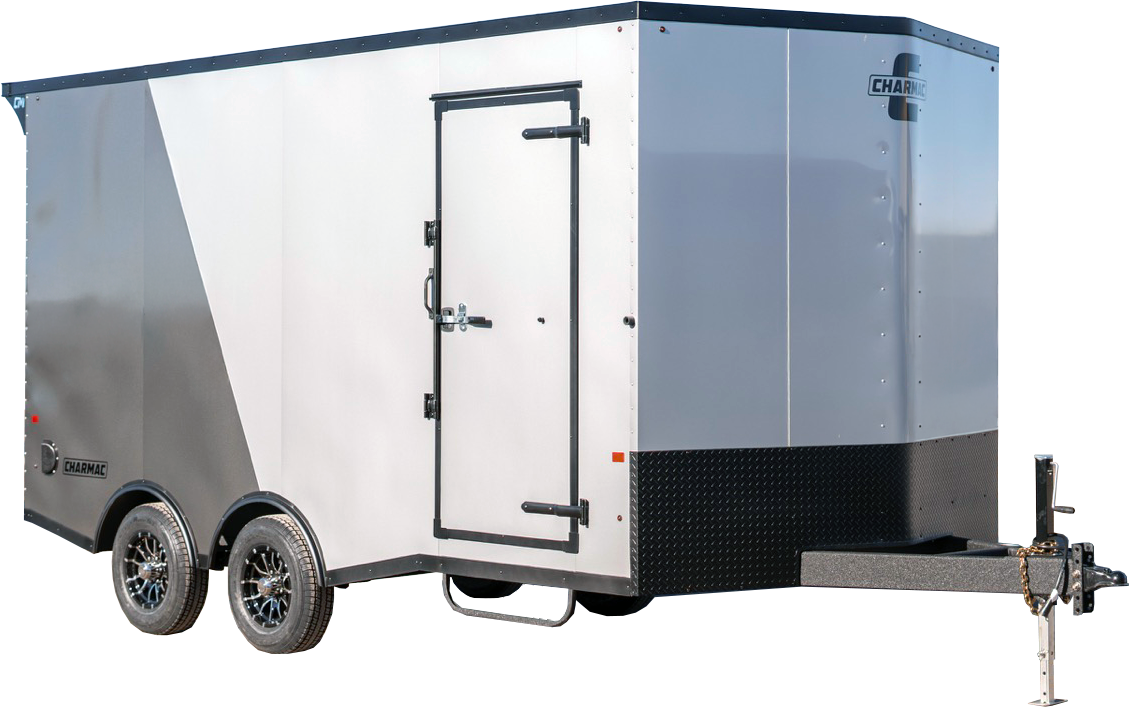

.The Stealth Cargo is where quality meets value. Designed and built on the same foundation as even our most high end custom trailers, the Stealth Cargo series is unrivaled in quality in it's category. Stealth Cargo models can be fully customized as well to meet your exact specifications for almost any use. Tubed wall supports, heavier frame walls, and Charmac's own heavy duty "Bridged" roof system set us apart for any competition and deliever a very high quality porduct consistant with the Charmac name.

Click here for 5',6', and 7' wide brochure.

Click here for 100" wide brochure.

*Some photos may show optional features.

Standard Features

  • Tube Steel Chassis
  • 1"x1" Tube Steel Walls
  • 1.5"x1.5" Tube Steel Roof
  • Top Wind Jack
  • 3" Square Extruded Aluminum Roof Header
  • .030 Aluminum Exterior Skin
  • 16" Tradbrite Front Rock Guard
  • 32" Bar Latch Side Door with Grab Handle
  • All Exterior Posts and Seams Taped
  • Aluminum Fenders
  • Double Rear Doors
  • Spring Axles
  • Silver Mod Wheels and Radial Trailer Tires
  • 3/4" DryMax Floor
  • Natural Luan Walls
  • 1 LED Dome Lights with Switch
  • Full LED Light Package
  • Aluminum Capped Rear Corner Posts
  • Fully Painted Frame
  • Encased Wiring

Sizes & Specs

Model Length:

8'

10'

10'

12'

14'

16'

10'

12'

14'

16'

Model Width:

5' Wide

6' Wide

7' Wide

Overall Length:

12' 14' 14' 2" 16' 2" 18' 2" 20' 2" 14' 9" 16' 9" 18' 9" 20' 9"

Overall Width:

78 in. 78 in. 90 in. 90 in. 90 in. 90 in. 101 in. 101 in. 101 in. 101 in.

Overall Height:

81 in. 81 in. 94 in. 94 in. 94 in. 94 in. 101 in. 101 in. 101 in. 101 in.

Inside Length:

8' 4" 10' 4" 10' 4" 12' 4" 14' 4" 16' 4" 10' 4" 12' 4" 14' 4" 16' 4"

Inside Width:

58 in. 58 in. 70 in. 70 in. 70 in. 70 in. 82 in. 82 in. 82 in. 82 in.

Inside Height:

60 in. 60in. 72 in. 72 in. 72 in. 72 in. 78 in. 78 in. 78 in. 78 in.

Side Door Dimensions:

58" x 31" 58" x 31" 70" x 31" 70" x 31" 70" x 31" 70" x 31" 76" x 31" 76" x 31" 76" x 31" 76" x 31"

Rear Ramp Dimensions:

50" x 60.75" 50" x 60.75" 62" x 70" 62" x 70" 62" x 70" 62" x 70" 74" x 77" 74" x 77" 74" x 77" 74" x 77"

Estimated Trailer Weight:

850 lbs. 950 lbs. 1,380 lbs. 1,540 lbs. 1,700 lbs. 1,860 lbs. 1,540 lbs. 1,700 lbs. 1,860 lbs. 2,020 lbs.

Undercarriage Options

Option 1:

Single 3,500 lb. Spring Axles | ST 205x14C Radial Tires W/5 Hole Wheels | GVWR: 2,720 lbs.

Option 2:

Tandem 3,500 lb. Spring Axles | ST 205x14C Radial Tires W/5 Hole Wheels | GVWR: 7,000 lbs.

Model Length:

12'

14'

16'

18'

20'

22'

24'

26'

28'



Model Width:

100" Wide

Overall Length:

17' 2" 19' 2" 21' 2" 23' 2" 25' 2" 27' 2" 29' 2" 31' 2" 33' 2"

Overall Width:

102 in. 102 in. 102 in. 102 in 102 in 102 in 102 in 102 in 102 in

Overall Height:

100 in. 100 in. 100 in. 100 in. 100 in. 100 in. 100 in. 100 in. 100 in.

Inside Length:

8' 4" 10' 4" 10' 4" 12' 4" 14' 4" 16' 4" 10' 4" 12' 4" 14' 4"

Inside Width:

98 in. 98 in. 98 in. 98 in. 98 in. 98 in. 98 in. 98 in. 98 in.

Inside Height:

78 in. 78 in. 78 in. 78 in. 78 in. 78 in. 78 in. 78 in. 78 in.

Side Door Dimensions:

75" x 31" 75" x 31" 75" x 31" 75" x 31" 75" x 31" 75" x 31" 75" x 31" 75" x 31" 75" x 31"

Rear Ramp Dimensions:

96" x 76.75" 96" x 76.75" 96" x 76.75" 96" x 76.75" 96" x 76.75" 96" x 76.75" 96" x 76.75" 96" x 76.75" 96" x 76.75"

Estimated Trailer Weight:

2,120 lbs. 2,240 lbs. 2,360 lbs. 2,480 lbs. 2,600 lbs. 2,720 lbs. 2,840 lbs. 2,960 lbs. 3,080 lbs.

Undercarriage Options

Option 1:

Tandem 3,500 lb. Spring Axles | ST 205x14C Radial Tires W/5 Hole Wheels | GVWR: 7,000 lbs.

Option 2:

Tandem 5,200 lb. Spring Axles | ST 225x15D Radial Tires W/6 Hole Wheels | GVWR: 9,990 lbs.

Available Colors

(Custom colors may be available upon request.)

Available Options
