Overview

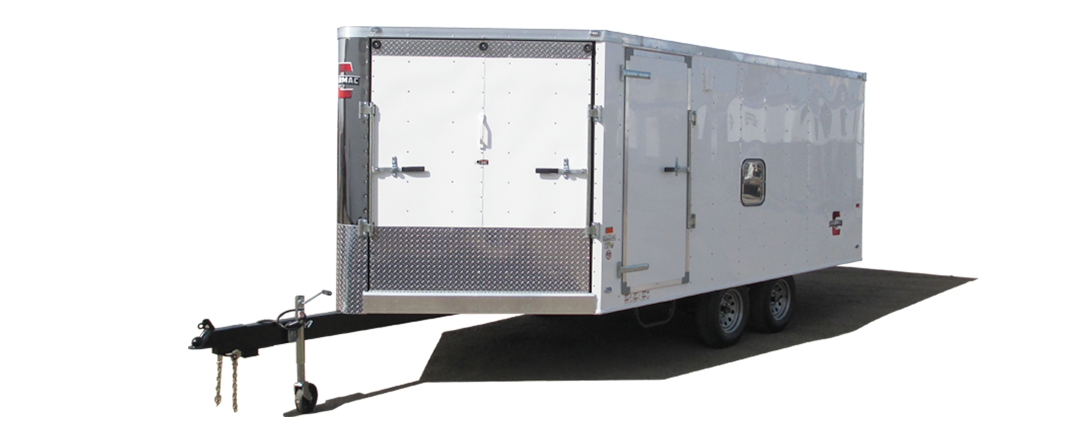

The Stealth Avalanche is the perfect run around trailer. with the capability of towing 2-3 ATV's or long track snowmobiles depending on selected size, it's low height, compact length, and interior width allow you to get in and out of tight areas while still hauling all you need. At a smaller size and weight they are also great for towing behind smaller trucks or SUV's with ease.

Click here for brochure.

*Some photos may show optional features.

Standard Features

  • Tube Steel Chassis
  • 1"x1" Tube Steel Walls
  • 1.5"x1.5" Tube Steel Roof
  • 5'6" Interior Height
  • Swivel Jack
  • 3" Radius Extruded Aluminum Roof Header
  • .030 Aluminum Exterior Skin
  • Polished Stainless Steel Nose
  • 24" Tradbrite All Around
  • Crank up 14"x14" Roof Vent
  • 15"x15" Fuel Access Door
  • All Exterior Posts and Seams Taped
  • Encased Wiring
  • 60" Front Ramp with Caliber Ramp Cleats
  • Rubber Torsion Axles
  • Silver Wheels and Radial Trailer Tires
  • 3/4" DryMax Floor
  • White Lauan Walls
  • 4 L.D. Floor Ties
  • 1 LED Dome Lights with Switch
  • Flow Thru Venting
  • Full LED Light Package
  • 95" Rear Ramp With Cable Assist And Caliber Cleats
  • Aluminum Capped Rear Corner Posts
  • Fully Painted Frame

Sizes & Specs

Model Length:

16'

18'

Overall Length:

19' 11" 21' 11"

Overall Width:

102 in. 102 in.

Overall Height:

94 in. 94 in.

Inside Length:

15' 9" 17' 9"

Inside Width:

99.5 in. 99.5 in.

Inside Height:

66 in. 66 in.

Side Door Dimensions:

32" Wide (Optional) 32" Wide (Optional)

Rear Ramp Dimensions:

95.5" x 66.5" 95.5" x 66.5"

Estimated Trailer Weight:

2,150 lbs. 2,350 lbs.

Undercarriage Options

Option 1:

Single 3,500 lb. Spring Axles | ST 205x14C Radial Tires W/5 Hole Wheels | GVWR: 2,990 lbs. (available with or without brakes)

Option 2:

Tandem 3,500 lb. Spring Axles | ST 205x14C Radial Tires W/5 Hole Wheels | GVWR: 7,000 lbs. (available with or without brakes)

Option 3:

Single 5,200 lb. Spring Axles | ST 225x15D Radial Tires W/6 Hole Wheels | GVWR: 5,080 lbs.

Option 4:

Tandem 5,200 lb. Spring Axles | ST 225x15D Radial Tires W/6 Hole Wheels | GVWR: 9,990 lbs.

Available Packages

Keith Curtis 711 Edition Package

Included Feature:

  • Rubber Diamond Plate Floor and Ramps
  • Spread Axles
  • Aluminum Wheels
  • Spare Tire Mount
  • Caliber Ramp Cleats and LowPro Grip Glides on Front Ramp
  • Frameless Window In Side Doors
  • Keith Curtis 711 Edition Graphics
  • Slide Out Aluminum Step
  • Insulated Walls and Ceiling
  • 6in. Extruded Aluminum Kickplate
  • 8' Helmet Cabinet
  • 8' Adjustable Clothes Hooks
  • 3M VHB Bonded Exterior Sheeting
  • 60" Padded Folding Bench
  • 35,000 BTU Forced Air Furnace
  • 6 - LED Interior Dome Lights
  • 2 - 4" Exterior LED Loading Lights

Keith Curtis 711 Pro Edition Package

Included Feature:

  • Bonded White Aluminum Walls and Ceiling with 36" Treadbrite Bottom
  • Aluminum Gas Can Holder With 2 Cans
  • Spread Axles
  • Aluminum Wheels
  • 2 - Slide Out Aluminum Steps
  • Spare Tire Mount
  • Caliber Ramp Cleats and LowPro Grip Glides on Front Ramp
  • Rollover Couch/Bed
  • 2 - Frameless Windows In Side Doors
  • Keith Curtis 711 Pro Edition Graphics
  • Insulated Walls and Ceiling
  • 6in. Extruded Aluminum Kickplate
  • 8' Helmet Cabinet
  • 8' Adjustable Clothes Hooks
  • Additional 36" RV Side Door
  • 3M VHB Bonded Exterior Sheeting
  • 2 - 60" Padded Folding Bench
  • 35,000 BTU Forced Air Furnace
  • 6 - LED Interior Dome Lights
  • 2 - 24" Exterior LED Loading Lights
  • Kicker Stereo System
  • Rubber Diamond Plate Floor and Ramps
  • 24" Aluminum Gooseneck Step

Available Colors

(Custom colors may be available upon request.)

Available Options
