Overview



Charmac's Horse and Stock trailers go back 40 years to the founding of our company, and for 40 years Charmac has been building some of the highest quality horse trailers available. All new for this year the Drifter delivers exceptional quality, features, and the best value you can find. The drifter is available in both bumper pull and gooseneck models, and can be customized with a variety of options to fit any need or style.

Click here for brochure.

*Some photos may show optional features.

Standard Features

  • Tube Steel Chassis
  • 1.5"x1.5" Tubed Steel Walls
  • 1.5"x1.5" Tubed Steel Roof
  • 5k Drop Leg Jack
  • 3" Radius Extruded Aluminum Roof Header
  • .050 Aluminum Exterior Skin - Two Tone Available
  • 24" Tradbrite Front Rock Guard
  • Triple Wall Construction up 48"
  • Protective Coated Fender Steps
  • Solid Angle Partition
  • Spare Tire Carrier
  • 36" Radius Style RV Tac Door with Grab Handle
  • Saddle Rack
  • Frame fully coated with Polyurea (bed liner material)
  • All Exterior Posts and Seams Taped
  • Encased Wiring
  • Aluminum Padded Stall Dividers
  • 54" Offset with 40" Stalls
  • Dual Top Air Spaces
  • Spring Axles
  • All Wheel Electric Brakes
  • Silver Mod Wheels and Radial Trailer Tires
  • Plank Wood Floor with Rubber Floor Mats
  • Single Rear Gate
  • Bridle Hooks, Brush Bag, Blanket Bar in Tac Room
  • Clothes Rod
  • Full LED Light Package
  • Aluminum Fenders
  • Choice of Graphics
  • Triple Wall Construction Up 48"
  • Horse Area Walls Coated with Polyurea bed liner material)

Sizes & Specs

Model Length:

2H BP

3H BP

2H GN

3H GN

4H GN

Overall Length:

14' 2" 17' 6" 20' 23' 3" 26' 6"

Overall Width:

102 in. 102 in. 102 in. 102 in. 102 in.

Overall Height:

102 in. 102 in. 102 in. 102 in. 102 in.

Inside Length:

9' 8" 13' 12' 15' 3" 18' 6"

Inside Width:

81 in. 81 in. 81 in. 81 in. 81 in.

Inside Height:

84 in. 84 in. 84 in. 84 in. 84 in.

Side Door Dimensions:

78" x 36" 78" x 36" 78" x 36" 78" x 36" 78" x 36"

Rear Opening Dimensions:

76" x 77.5" 76" x 77.5" 76" x 77.5" 76" x 77.5" 76" x 77.5"

Estimated Trailer Weight:



Undercarriage Options (Varies by size)

Option 1:

Tandem 3,500 lb. Spring Axles | ST 225x15D Radial Tires W/5 Hole Wheels | GVWR: 7,000 lb.

Option 2:

Tandem 5,200 lb. Spring Axles | ST 225x15D Radial Tires W/6 Hole Wheels | GVWR: 9,990 lbs.

Option 3:

Tandem 6,000 lb. Spring Axles | ST 235x16E Radial Tires W/8 Hole Wheels | GVWR: 12,000 lbs.

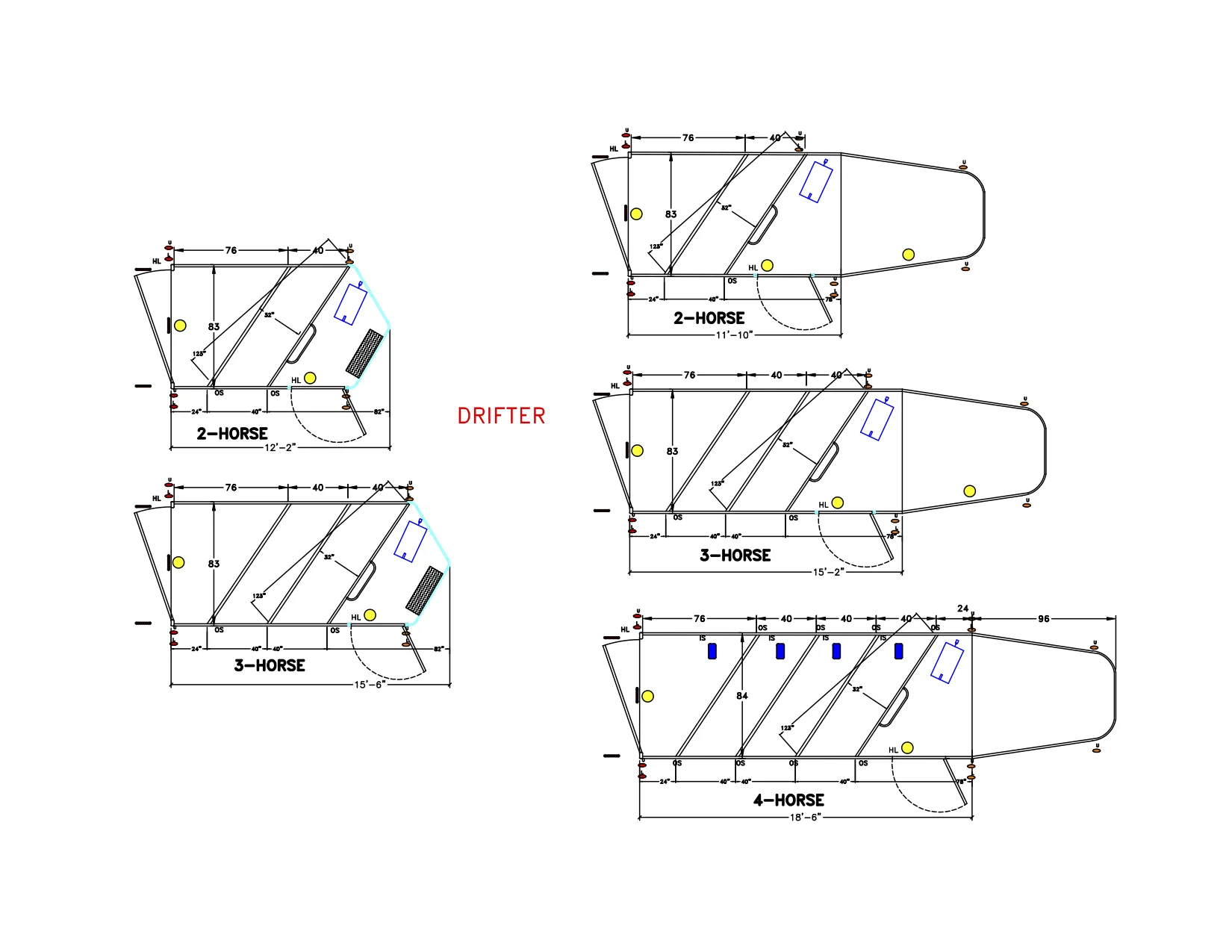

Floor Plans

Available Packages

Side Tac Package

Included Features:

  • Bridle Hooks
  • Additional 36" RV Door
  • Window in Additional Door





  • LED Light With Switch
  • Carpet On Floor
  • *Makes 2' Short Wall and 4x4 Dressing Room.
  • 2 Additional Feet in the Dressing Room
  • Swing Out Saddle Rack
  • LED Light With Switch

Mid Tac Package

Included Features:

  • 4 Additional Feet in Dressing Room
  • Straight Partition
  • Additional 36" RV Door
  • Window in Additional Door

Fold Up Rear Tac

Included Features:

  • Folding Rear Tac partition
  • Available with Swing Out Saddle Rack Attachment.

Available Colors

(Custom colors may be available upon request.)

.030 White

.030 White

.030 Pewter

.030 Pewter

.030/.050 Silver

.030/.050 Silver

.030/.050 Charcoal

.030/.050 Charcoal

.030/.050 Beige

.030/.050 Beige

.030/.050 Black

.030/.050 Black

Available Options
