Overview

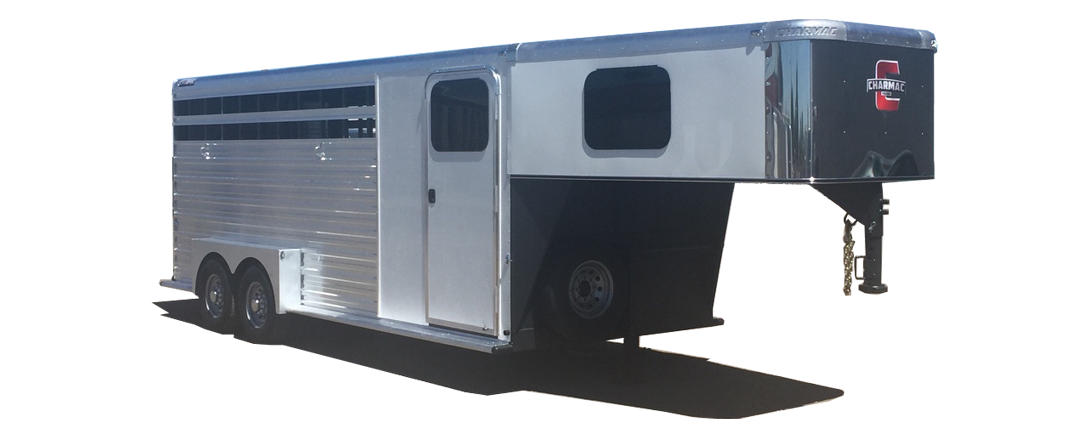

Charmac's Horse and Stock trailers go back nearly 40 years to the founding of our company, and for 40 years Charmac has been building some of the highest quality stock trailers available. All new for this year, the Rancher delivers exceptional quality, features, and most importantly value. With an all H.D. steel frame completely coated in a high durability poly-urea coating and extruded aluminum side slats, this trailer is sure to last generations. The Rancher is available in both bumper pull and gooseneck models, and can be customized with a variety of options to fit any need or style.

Click here for brochure.

*Some photos may show optional features.

Standard Features

  • H.D. Steel Construction
  • 1.5"x1.5" Tubed Wall Supports
  • 1.5"x1.5" Tube Roof with Seamless Aluminum Sheet
  • Entire Frame Coated with Ploy urea coating (Bed liner)
  • 5k Drop Leg Jack (BP), Drop Leg Jack (GN)
  • 3"Radius Extruded Aluminum Roof Header
  • 48"Double Walls
  • Aluminum Extruded Slat Sides
  • .050 Sheeting On Front and GN Area
  • Extruded Aluminum Running Boards Full Length
  • Floor Supports on 16" Centers
  • 2 Air Spaces On Sides
  • Wood Plank Floor
  • 4 Outside Tie Rings
  • 4 Inside Tie Rings
  • H.D. Aluminum Fenders
  • Torsion Axles
  • All Wheel Electric Brakes
  • Silver Mod Wheels and Radial Trailer Tires
  • Rear Rubber Bumper
  • Inside Cross Gate with Auto Latch
  • Combination Rear Gate
  • Rear Rubber Bumper
  • 36" Escape Door
  • Full LED Light Package - 2 Interior LEDs
  • Encased Wiring

Sizes & Specs

Model Length:

12' BP

14' BP

16' BP

18' BP

16' GN

18' GN

20' GN

22' GN

24' GN

Overall Length:

15' 17' 19' 21' 24' 26' 28' 30' 32'

Overall Width:

102 in. 102 in. 102 in. 102 in. 102 in. 102 in. 102 in. 102 in. 102 in.

Overall Height:

102 in. 102 in. 102 in. 102 in. 102 in. 102 in. 102 in. 102 in. 102 in.

Inside Floor Length:

11'8" 13'8" 15'8" 17'8" 15' 7" 17' 7" 19' 7" 21' 7" 23' 7"

Inside Width:

81 in. 81 in. 81 in. 81 in. 81 in. 81 in. 81 in. 81 in. 81 in.

Inside Height:

84 in. 84 in. 84 in. 84 in. 84 in. 84 in. 84 in. 84 in. 84 in.

Side Door Dimensions:

74"x36" 74"x36" 74"x36" 74"x36" 74"x36" 74"x36" 74"x36" 74"x36" 74"x36"

Rear Opening Dimensions:

76" x 77.5" 76" x 77.5" 76" x 77.5" 76" x 77.5" 76" x 77.5" 76" x 77.5" 76" x 77.5" 76" x 77.5" 76" x 77.5"

Estimated Trailer Weight:



Undercarriage Options (Varies by size)

Option 1:

Tandem 5,200 lb. Torsion Axles | ST 225x15D Radial Tires W/6 Hole Wheels | GVWR: 9,990 lbs.

Option 2:

Tandem 6,000 lb. Torsion Axles | ST 235x16E Radial Tires W/8 Hole Wheels | GVWR: 12,000 lbs.

Option 3:

Tandem 7,000 lb. Torsion Axles | ST 235x16E Radial Tires W/8 Hole Wheels | GVWR: 14,000 lbs.

Option 3:

Tandem 7,000 lb. Torsion Axles | ST 235x16G Radial Tires W/8 Hole Wheels | GVWR: 14,000 lbs.

Available Packages

Cowboy Package

Included Feature:

  • 4 - Saddle Race
  • Blanket Bar
  • Bridle Hooks
  • Floor Mat on Tac Floor
  • Angle Partition
  • 36" Radius RV Door with Window
  • Enclosed Tac Area
  • 2 LED Dome Lights with Switch
  • Solid Rear Gate

Available Colors

(Custom colors may be available upon request.)

.050 White

.050 White

.050 Silver

.050 Silver

.050 Beige

.050 Beige

.050 Charcoal

.050 Charcoal

.050 Black

.050 Black

Available Options
