Overview

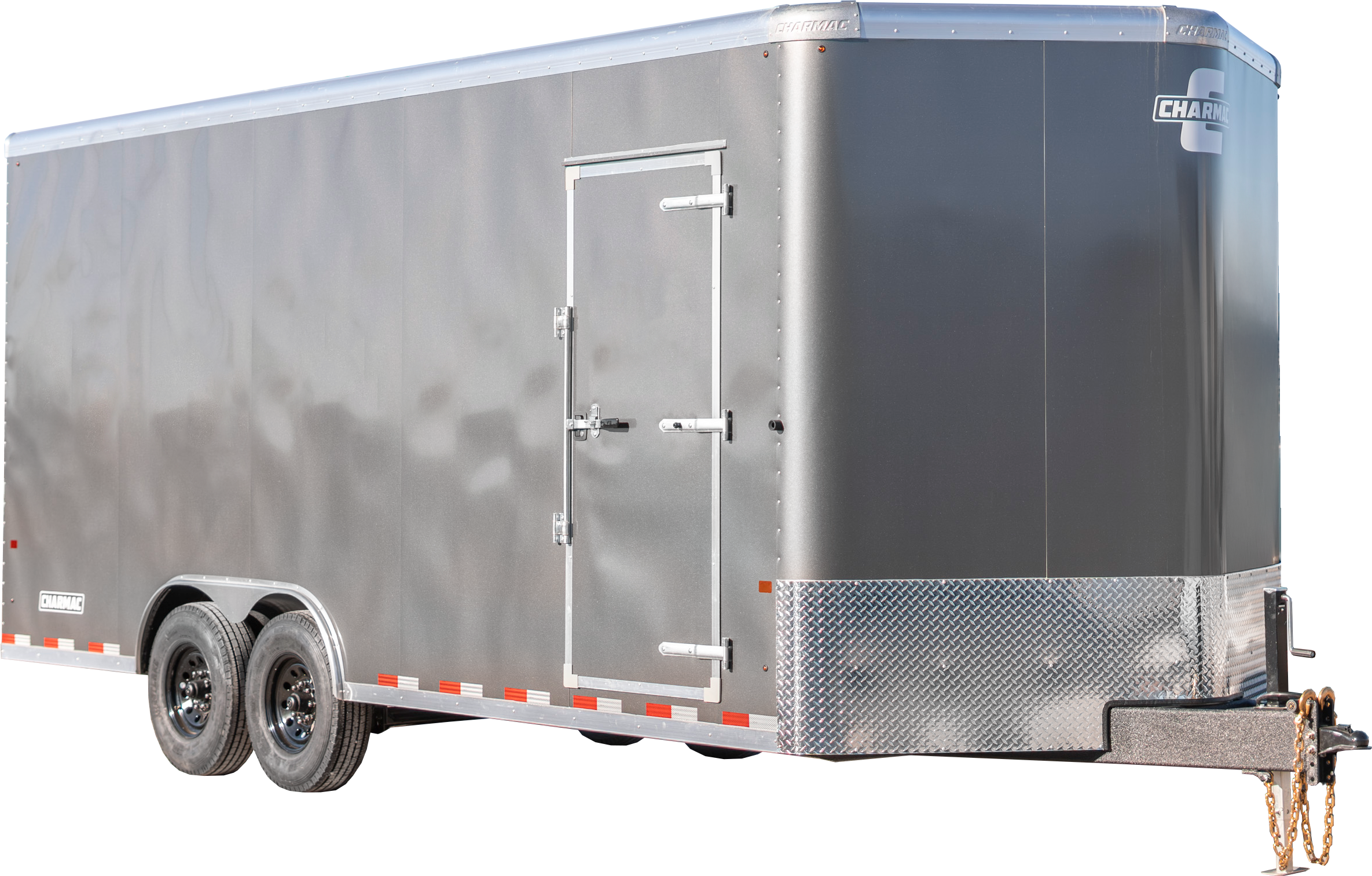

The Commercial Duty Cargo Series is built to get the job done. Additional floor supports, heavy duty walls, ceiling, and frame rails, and well as tougher doors than standard, make the commercial duty double tough and equipped to handle the task at hand. Our new 3" radius extruded roof header and cast aluminum roof header caps give the commercial duty killer style and functionality. 24" Aluminum Tradbrite front keeps your rig in tip top shape from the elements of the road as well. The commercial duty can be built to almost any spec and customized to work for your business or application. Popular options include: Windows, protective coating on tongue, bonded exterior sheeting, cable assist rear ramp, 110v electrical, generators, additional LED lighting, and much more.

Click here for 6' and 7' Wide brochure.

Click here for 100" Wide brochure.

*Some photos may show optional features.

Standard Features

  • Tube Steel Chassis
  • 1"x1" Tube Steel Walls
  • 1.5"x1.5" Tube Steel Roof
  • 5k Drop Leg Jack
  • 3" Radius Extruded Aluminum Roof Header
  • .030 Aluminum Exterior Skin
  • 24" Tradbrite Front Rock Guard
  • Cast Aluminum Header Corners
  • 32" Bar Latch Side Door with Grab Handle
  • All Exterior Posts and Seams Taped
  • Aluminum Fender Flares
  • Torsion Axles
  • Silver Mod Wheels and Radial Trailer Tires
  • 3/4" DryMax Floor
  • White Lauan Walls or 3/8" Plywood Walls
  • 1 LED Dome Lights with Switch
  • Full LED Light Package
  • Aluminum Capped Rear Corner Posts
  • Fully Painted Frame
  • Encased Wiring
  • Double Rear Doors

Sizes & Specs

Model Length:

10'

12'

14'

10'

12'

14'

16'

18'

20'

Model Width:

6' Wide

7' Wide

Overall Length:

14' 2" 16' 2" 18' 2" 14' 9" 16' 9" 18' 9" 20' 9" 22' 9" 24' 9"

Overall Width:

90 in. 90 in. 90 in. 101 in. 101 in. 101 in. 101 in. 101 in. 101 in.

Overall Height:

94 in. 94 in. 94 in. 101 in. 101 in. 101 in. 101 in. 101 in. 101 in.

Inside Length:

10' 4" 12' 4" 14' 4" 10' 4" 12' 4" 14' 4" 16' 4" 18' 4" 20' 4"

Inside Width:

70 in. 70 in. 70 in. 82 in. 82 in. 82 in. 82 in. 82 in. 82 in.

Inside Height:

72 in. 72 in. 72 in. 78 in. 78 in. 78 in. 78 in. 78 in. 78 in.

Side Door Dimensions:

70" x 31" 70" x 31" 70" x 31" 76" x 31" 76" x 31" 76" x 31" 76" x 31" 76" x 31" 76" x 31"

Rear Ramp Dimensions:

62" x 70" 62" x 70" 62" x 70" 74" x 77" 74" x 77" 74" x 77" 74" x 77" 74" x 77" 74" x 77"

Estimated Trailer Weight:

1,380 lbs. 1,540 lbs. 1,700 lbs. 1,540 lbs. 1,700 lbs. 1,860 lbs. 2,020 lbs. 2,180 lbs. 2,340 lbs.

Undercarriage Options

Option 1:

Single 3,500 lb. Spring Axles | ST 205x14C Radial Tires W/5 Hole Wheels | GVWR: 2,720 lbs.

Option 2:

Tandem 3,500 lb. Spring Axles | ST 205x14C Radial Tires W/5 Hole Wheels | GVWR: 7,000 lbs.

Model Length:

12'

14'

16'

18'

20'

22'

24'

26'

28'

30'

32'

Model Width:

100" Wide

Overall Length:

17' 2" 19' 2" 21' 2" 23' 2" 25' 2" 27' 2" 29' 2" 31' 2" 33' 2" 35' 2" 37' 2"

Overall Width:

102 in. 102 in. 102 in. 102 in 102 in 102 in 102 in 102 in 102 in 102 in 102 in

Overall Height:

100 in. 100 in. 100 in. 100 in. 100 in. 100 in. 100 in. 100 in. 100 in. 100 in. 100 in.

Inside Length:

12' 11" 14' 11" 16' 11" 18' 11" 20' 11" 22' 11" 24' 11" 26' 11" 28' 11" 30' 11" 32' 11"

Inside Width:

98 in. 98 in. 98 in. 98 in. 98 in. 98 in. 98 in. 98 in. 98 in. 98 in. 98 in.

Inside Height:

78 in. 78 in. 78 in. 78 in. 78 in. 78 in. 78 in. 78 in. 78 in. 78 in. 78 in.

Side Door Dimensions:

75" x 31" 75" x 31" 75" x 31" 75" x 31" 75" x 31" 75" x 31" 75" x 31" 75" x 31" 75" x 31" 75" x 31" 75" x 31"

Rear Ramp Dimensions:

96" x 76.75" 96" x 76.75" 96" x 76.75" 96" x 76.75" 96" x 76.75" 96" x 76.75" 96" x 76.75" 96" x 76.75" 96" x 76.75" 96" x 76.75" 96" x 76.75"

Estimated Trailer Weight:

2,120 lbs. 2,240 lbs. 2,360 lbs. 2,480 lbs. 2,600 lbs. 2,720 lbs. 2,840 lbs. 2,960 lbs. 3,080 lbs. 3,200 lbs. 3,320 lbs.

Undercarriage Options

Option 1:

Tandem 3,500 lb. Spring Axles | ST 205x14C Radial Tires W/5 Hole Wheels | GVWR: 7,000 lbs.

Option 2:

Triple 3,500 lb. Spring Axles | ST 205x14C Radial Tires W/5 Hole Wheels | GVWR: 10,500 lbs.

Option 3:

Tandem 5,200 lb. Spring Axles | ST 225x15D Radial Tires W/6 Hole Wheels | GVWR: 9,990 lbs.

Option 4:

Triple 5,200 lb. Spring Axles | ST 225x15D Radial Tires W/6 Hole Wheels | GVWR: 15,000 lbs.

Option 5:

Tandem 6,000 lb. Spring Axles | ST 235x16E Radial Tires W/8 Hole Wheels | GVWR: 12,000 lbs.

Option 6:

Triple 6,000 lb. Spring Axles | ST 235x16E Radial Tires W/8 Hole Wheels | GVWR: 18,000 lbs.

Available Colors

(Custom colors may be available upon request.)
